TCP-CSV Data Collector

The TCP-CSV Data Collector simplifies integrating legacy equipment and device servers into your Machinechat JEDI IoT system. It seamlessly parses incoming comma-separated values (CSV) data streams over TCP connections, making the data instantly available for visualization, analysis, and automation.

Use Cases & Benefits

  • Legacy Equipment Modernization: Bridge the data gap between older serial-based machines and your IoT infrastructure. Collect data from sensors or devices lacking modern communication protocols.

  • Device Server Integration: Effortlessly connect with device servers that convert serial data into TCP/CSV format. This is common for industrial equipment, PLCs, or specialized sensors.

  • Streamlined Data Parsing: Eliminate the need for complex, manual CSV parsing. JEDI extracts the metrics you need, ready for use.

How It Works

  1. TCP Server: JEDI's TCP-CSV Data Collector acts as a TCP server, listening on a specified port for incoming connections.

  2. CSV Data Reception: The collector expects a CSV format.

    Example: "Engine3,3500,50\n"

  3. Data Format Configuration: You provide a "Data Format String" that defines the structure of the CSV. Example:

n:TARGETID;ty:string,n:RPM;ty:number,n:Pressure;ty:number
  1. Data Extraction: JEDI automatically parses the CSV according to your Data Format String, creating individual data sources and metrics.

Configuration

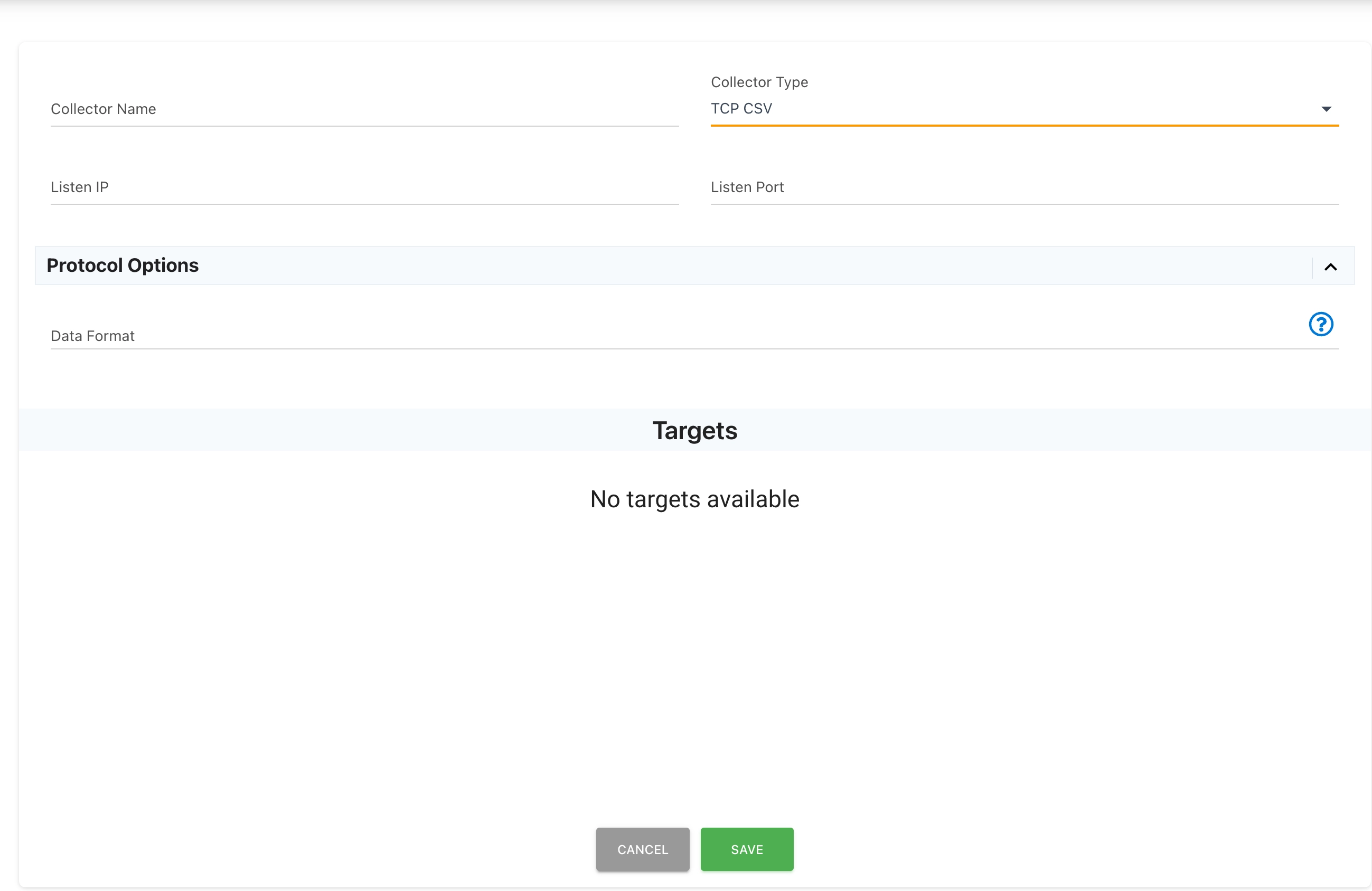

JEDI TCP-CSV Data Collector Configuration
JEDI TCP-CSV Data Collector Configuration
  1. Navigate to Settings -> Data Collectors in the JEDI web interface.

  2. Click the ADD COLLECTOR button to create a new data collector.

  3. Select "TCP-CSV" as the Collector Type.

  4. Configure the Following Fields:
  5. Collector Name: A unique name to identify this collector.
  6. Listen IP: The IP address on which to listen for incoming data.
  7. Listen Port: The TCP port number for the collector.
  8. Data Format String: (See detailed explanation below)

Data Format String Explained

The Data Format String is crucial for correctly interpreting the CSV data. It uses the following syntax:

  • n:: Assigns a name to a CSV field.
  • n:TARGETID: Designates a particular field as the unique device identifier.
  • ty:: Assigns a data type:
    • ty:number
    • ty:string
    • ty:bool (values should be "true" or "false")
    • ty:timestamp (values should be in ISO8601 format)

Example

Let's analyze the following incoming data and Data Format String:

  • Incoming Data: "Engine3,3500,50\n"
  • Data Format String: n:TARGETID;ty:string,n:RPM;ty:number,n:Pressure;ty:number

This configuration tells JEDI:

  • The first field (Engine3) is a string and represents the device ID.

  • The second field (3500) is a number representing the RPM value.

  • The third field (50) is a number representing the Oil Pressure value.

Testing (in lieu of a device server)

import socket

TCP_IP = '192.168.1.6'  # JEDI's IP address
TCP_PORT = 9001  # JEDI's listening port
MESSAGE = 'Engine3,3500,50\n'.encode("ascii")

s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
s.connect_ex((TCP_IP, TCP_PORT))
s.send(MESSAGE)
s.close()
Start using the TCP-CSV Data Collector to unlock insights from your legacy devices today!
